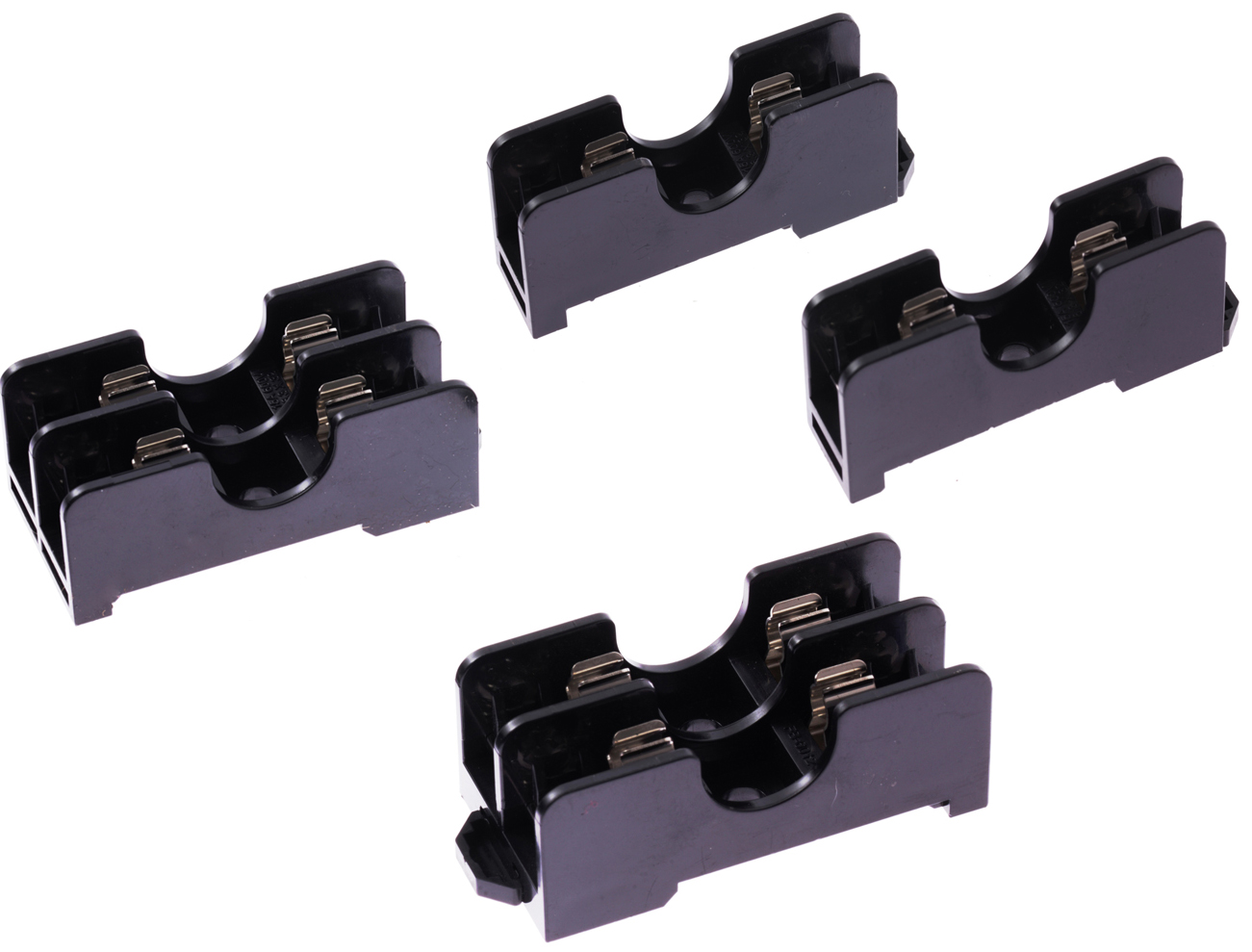

FB-601x Series Din Rail Mounted 6x30mm 600V 15A Midget Fuse Box

SHINING FB-601x Series Din Rail Mounted 6x30mm 600V 15A Fuse Box including

Item Number: FB-6011 / FB-6012 (Certificate: RoHS)

Rated Voltage: 600V    Rated Current: 15A (Max: 20A)   Pole: 1 and 2  are available

Terminal Type: Screw and Pressure Plate with Quick Connector

Install Type: By Panel Mounted &  Din Rail Mounted

Suitable for 6x30mm Glass Tube Fuse.

Fuse Failure Indicator is an optional parts for the Fuse Box.

SHINING is pleased to announce the launch of its new line of Modular Fuse Holders in addition to the existing line of Fuse Blocks. The new range of Modular Fuse Holders provides:

  • Safe operation
  • Fast and simple multiple pole assembly
  • Quick fuse installation and replacement
  • Blown fuse indicator for quick identification of fuse failures.
