TE-060 Din Rail Mounted 600V 60A Terminal Strip

  • Inquiry

  • Download

    • TE-060 Din Rail Mounted 600V 60A Terminal Strip



    Rated Voltage: 600V

    Rated Current: 60A

    Dimension: 27.5 x 52.0 x 34.0 mm (L x W x H)

    Install Type: 35mm Din Rail Mounted (TA-001A / TA-001S)

    Certificate: RoHS Approval

    Pole: Any Poles is available. Please see the Specification Table below:



Description

TE-060 Din Rail Mounted 600V 60A Terminal Strip



Gerneral Product Information
Item number: TE-060
Rating: 600V, 60A
Size: 27.5*52.0*34.0mm (L*W*H)
Wire Size: 16.0 mm2 / AWG 6
Screw Size: M6



Dimensions [mm]
Item No. Poles (P) Length (L) Width (W) Height (H)
TE-060-01P 1 20.0*1+7.5=27.5 52.0 mm

34.0 mm
TE-060-02P 2 20.0*2+7.5=47.5
TE-060-03P 3 20.0*3+7.5=67.5
TE-060-04P 4 20.0*4+7.5=87.5
TE-060-05P 5 20.0*5+7.5=107.5
TE-060-nP n 20.0*n+7.5
7.5 mm = Length of End Plate X 2 PCS

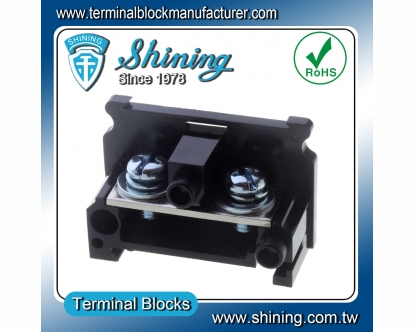

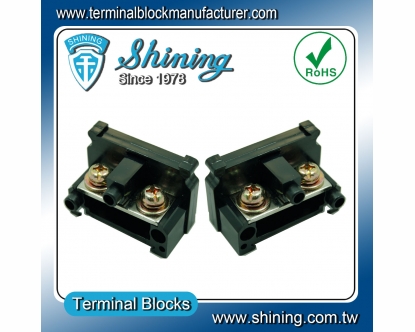

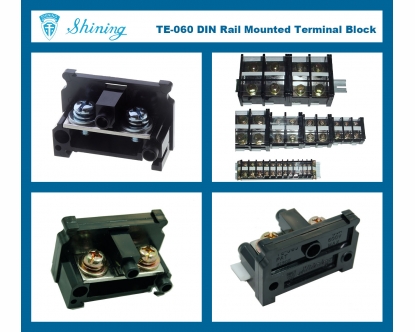

Product Photos

TE-060 Din Rail Mounted 600V 60A Terminal Strip



Specification Sheet
TE Series Product Picture TE Series
Item No. TE-010 TE-020 TE-030 TE-040 TE-060
specifications

Total Length (L) [mm]

8.8*n+6.0

10.8*n+6.0

13.0*n+6.0

15.0*n+6.0

20.0*n+7.5
Ref. Length (L1) [mm] 8.8*n 10.8*n 13.0*n 15.0*n 20.0*n
Gap (A) [mm] 7.0 8.0 10.0 12.0 16.5
Pitch (B) [mm] 8.8 10.8 13.0 15.0 20.0
Width (W) [mm] 38.0 38.0 38.0 38.0 52.0
Height (H) [mm] 25.0 25.0 25.0 25.0 34.0
Screw (C) (Steel, Zinc Plated) M3 M4 M4 M5 M6
Rated Torque [N-m] 0.5 1.2 1.2 2.0 2.5
Rated Torque [in-lb] 4.4 10.6 10.6 17.7 22.1
Poles/Positions (P) Any (n: the Number of Poles)
Electrical Specification

Rated Voltage [V]

 600V
Rated Current [A] 10A 20A 30A 40A 60A
Wire Size [mm2] 1.6 mm2 4.0 mm2 6.0 mm2 10.0 mm2 16.0 mm2
Wire Size (AWG) AWG 16 AWG 12 AWG 10 AWG 8 AWG 6

Materials


Insulator Materials PC
Color Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2 (UL94V-0)
Operating Temperature [℃] -40℃~+110℃ (Max: +220℃)
Conductor Brass, Nickel Plated (Copper, Tin Plated)
Accessories & Parts Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
Protective Cover is optional for the alternative of Transparent Cover.
End Plate TE-010EP TE-060EP
End Clamp

TE-002, TE-002H, TA-002, TA-002H, TF-ECL, TF-ECH
DIN Mount Rail TA-001A, TA-001S (35mm DIN Rail)
Protective Cover M-PCV-E010 (=TE-003) TE-060C
Transparent Cover N/A M-CV-060

Paper Marker Strip (Free)

 M-MKS-010 (-XXX: Length) M-MKS-060 (-XXX: Length)
Mounting Rod [mm] (Steel) M-MRD-010S (-XXX: Length) M-MRD-060S (-XXX: Length)
Remarks Ex: TE-010-07P (7 poles assembly of TE-010)



TE Series Product Picture TE-DR
Item No. TE-080 TE-100 TE-125 TE-150 TE-200 TE-300 TE-400
specifications

Total Length (L) [mm]

20.0*n+7.5

26.5*n+8.0

26.5*n+8.0

30.0*n+8.0

35.0*n+8.0

42.0*n+10.0

50.0*n+10.0
Ref. Length (L1) [mm] 20.0*n 26.5*n 26.5*n 30.0*n 35.0*n 42.0*n 50.0*n
Gap (A) [mm] 16.5 22.5 22.5 26.0 31.0 37.0 45.0
Pitch (B) [mm] 20.0 26.5 26.5 30.0 35.0 42.0 50.0
Width (W) [mm] 52.0 64.0 64.0 70.0 80.0 106.0 106.0
Ref. Width (W1) [mm] 34.0 38.0 38.0 40.0 48.0 58.0 58.0
Screw (C) (Steel, Zinc Plated) M6 M8 M8 M8 M10 M10 M10
Rated Torque [N-m] 2.5 6.0 6.0 6.0 10.0 10.0 10.0
Rated Torque [in-lb] 22.1 53.1 53.1 53.1 88.5 88.5 88.5
Poles/Positions (P) Any (n: the Number of Poles)
Electrical Specification

Rated Voltage [V]

 600V
Rated Current [A] 80A 100A 125A 150A 200A 300A 400A
Wire Size [mm2] 25.0 mm2 35.0 mm2 50.0 mm2 60.0 mm2 100.0 mm2 175.0 mm2 280.0 mm2
Wire Size (AWG) AWG 4 AWG 2 1 1/0 3/0 350 550

Materials


Insulator Materials PC (PA66)
Color Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2 (UL94V-0)
Operating Temperature [℃] -40℃~+110℃ (Max: +220℃)
Conductor Brass, Nickel Plated (Copper, Tin Plated)
Accessories & Parts Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
Protective Cover is optional for the alternative of Transparent Cover.
End Plate TE-080EP TE-100EP TE-125EP TE-150EP TE-200EP TE-300EP TE-400EP
End Clamp TE-002, TE-002H, TA-002, TA-002H, TF-ECL, TF-ECH
DIN Mount Rail TA-001A, TA-001S (35mm DIN Rail)
Protective Cover TE-060C N/A
Transparent Cover M-CV-060 M-CV-100 M-CV-100 M-CV-100 M-CV-200 M-CV-300 M-CV-300

Paper Marker Strip (Free)

 M-MKS-060 (-XXX: Length)
Mounting Rod [mm] (Steel) M-MRD-060S (-XXX: Length)
Remarks Ex: TE-400-04P (4 poles assembly of TE-400)



Packaging
50pcs/box, 400pcs/8boxes/N.W. :16.0kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.

 Express Bar

23

Company



 FAQ

Q: Which type of Terminal Block should I choose?
A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected.  In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)?  Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)?

Q: How long does the delivery time take?
A: We send our goods from Taiwan, and the delivery time depends on the location of delivery address, and the shipping way will be Express Service, Sea Shipping, or Air Shipping for your reference. Exxpress Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on thr Logistuc Schedule after remitting the Payment.

Q: How long is the Lead Time after placing an order?
A: The Lead Time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.
