TB-31502CP 300V 15A 2 Pole Fixed Terminal Block

  • Inquiry

  • Download

    • TB-31502CP 300V 15A 2 Pole Fixed Terminal Block



    Rated Voltage: 300V

    Rated Current: 15A

    Dimension: 36.6 x 25.0 x 19.0 mm (L x W x H)

    Screw: M3

    Mounted Hole: M5

    Install Type: Panel Mounted. Din Ral is not required.

    Characteriestic:

    1. Open a hole on Protective Cover. Easy to fasten the screw by screw driver.

    2. Screw Material: C= Steel Screw; CP= Steel Screw With Pressure Plate; CU= Stainless Steel Screw; CPU= Stainless Steel Screw With Pressure Plate

    Certificate: UL /cUL Approved.

    Pole: 2 Poles. Please see the Specification Table below:



Description

TB-31502CP 300V 15A 2 Pole Fixed Terminal Block



Gerneral Product Information
Item number: TB-31502CP
Rating: 300V, 15A, 2 Pole
Size: 36.6*25.0*19.0mm (L*W*H)
Wire Size: 2.0 mm2 /  AWG 14
Screw Size: M3



Dimensions [mm]
Item No. Poles (P) Length (L) Width (W) Height (H)
TB-31502CP 2 36.6 25.0 mm 19.0 mm
TB-31503CP 3 46.1
TB-31504CP 4 55.7
TB-31505CP 5 65.2
TB-31506CP 6 74.7
TB-31507CP 7 84.2
TB-31508CP 8 93.8
TB-31509CP 9 103.3
TB-31510CP 10 112.8
TB-31511CP 11 122.3
TB-31512CP 12 131.9
TB-31513CP 13 141.4
TB-31514CP 14 150.9
TB-31515CP 15 160.4



Product Photos

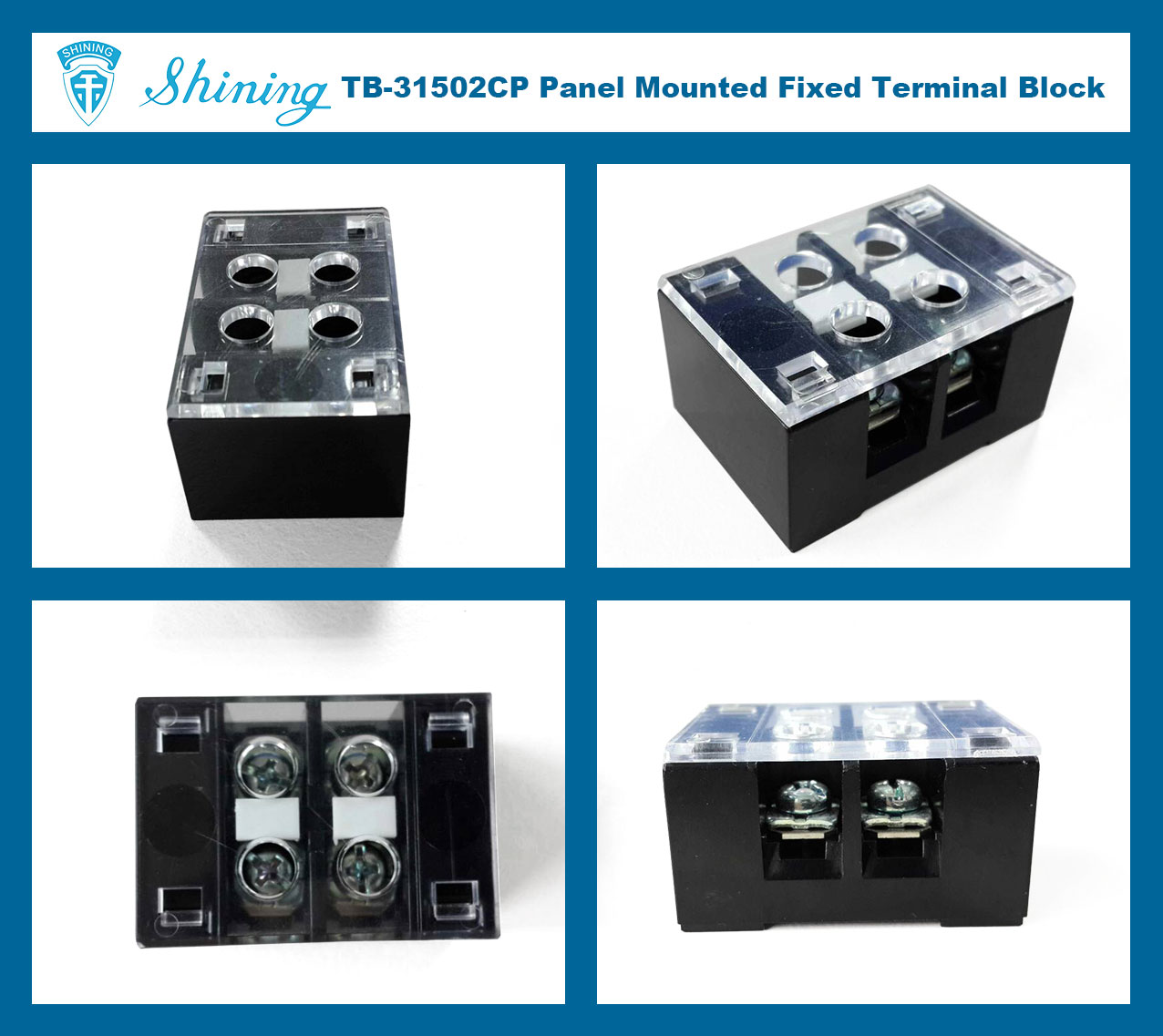

TB-31502CP 300V 15A 2 Pole Fixed Terminal Block



Product Pictures
Item No. TB-31502CP TB-31503CP TB-31504CP TB-31505CP TB-31506CP TB-31507CP TB-31508CP
Electrical Specifications
Rated Volt [V] 300V
Rated Current [A] 15A
Wire Size [mm2] 2.0 mm2
Wire Size [AWG] AWG 14
Materials
Insulator Materials Thermoplastic
Color Black (White, Blue, Red, Brown, ...)
Flam Retarded Grade UL94V-0
Operating Temperature [℃] -40℃~+110℃ (Max: +220℃)
Conductor Copper,Tin Plated.
Dimensions Protective Cover come with terminal blocks for free.  No Marker Strip need.
Total Length L [mm] 36.6 46.1 55.7 65.2 74.7 84.2 93.8
Ref. Length L1 [mm] 26.8 36.3 45.8 55.3 64.9 74.4 83.9
Gap A [mm] 7.4 mm
Pitch B [mm] 9.5 mm
Width W [mm] 25.0 mm
Height H [mm] 19.0 mm
Screw (C) (Steel, Zinc Plated) M3
Rated Torque [N-m] 0.7
Rated Torque [in-lb] 6.0
Pole 2 3 4 5 6 7 8



Product Drawings
Item No. TB-31509CP TB-31510CP TB-31511CP TB-31512CP TB-31513CP TB-31514CP TB-31515CP
Electrical Specifications
Rated Volt [V] 300V
Rated Current [A] 15A
Wire Size [mm2] 2.0mm2
Wire Size [AWG] AWG 14
Materials
Insulator Materials Thermoplastic
Color Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-0
Operating Temperature [℃] -40℃~+110℃ (Max: +220℃)
Conductor Copper,Tin Plated.
Dimensions Protective Cover come with terminal blocks for free.  No Marker Strip need.
Total Length L [mm] 103.3 112.8 122.3 131.9 141.4 150.9 160.4
Ref. Length L1 [mm] 93.4 103.0 112.5 122.0 131.5 141.1 150.6
Gap A [mm] 7.4 mm
Pitch B [mm] 9.5 mm
Width W [mm] 25.0 mm
Height [mm] 19.0 mm
Screw (C) (Steel, Zinc Plated) M3
Rated Torque [N-m] 0.7
Rated Torque [in-lb] 6.0
Pole 9 10 11 12 13 14 15



Packaging
1000pcs/N.W. :14.0kgs /carton
