TGP-050-10BHH 10 Pin Power Splicer Terminal Block

  • Inquiry

  • Download

  • TGP-050-10BHH 600V 50A 10 Pin Power Splicer Terminal Block

    Rated Voltage: 600V

    Rated Current: 50A

    Pin (Pole): 10 Pin (Pole)

    Screw: Steel. Hexagon Socket Set Screw (M6-1.0). Stainless Steel is Optional Parts

    Input: 1 Way ; Output: 1 Way

    Certificate: RoHS. UL / cUL Approval

    Please see the Specification Table below:



Description

TGP-050-10BHH 600V 50A 10 Pin Power Splicer Terminal Block



Gerneral Product Information
Item number: TGP-050-10BHH
Rating: 600V, 50A, 10 Pin
Size: 170.0*37.0*32.5mm (L*W*H)
Wire Size:

Input: #16-6 AWG / Output: #16-6 AWG

Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2

Screw Size: Hexagon Socket Set Screw, M6-1.0



Dimensions [mm]
Item No. Pin (Pole) Length (L) Width (W) Height (H)
TGP-050-02BHH 2 50.0mm (1.969") 37.0mm (1.457") 32.5mm (1.280")
TGP-050-03BHH 3 65.0mm (2.559")
TGP-050-04BHH 4 80.0mm (3.150")
TGP-050-05BHH 5 95.0mm (3.740")
TGP-050-06BHH 6 110.0mm (4.331")
TGP-050-07BHH 7 125.0mm (4.921")
TGP-050-08BHH 8 140.0mm ( 5.512")
TGP-050-09BHH 9 155.0mm ( 6.102")
TGP-050-10BHH 10 170.0mm ( 6.693")
TGP-050-11BHH 11 185.0mm ( 7.283")
TGP-050-12BHH 12 200.0mm ( 7.874")

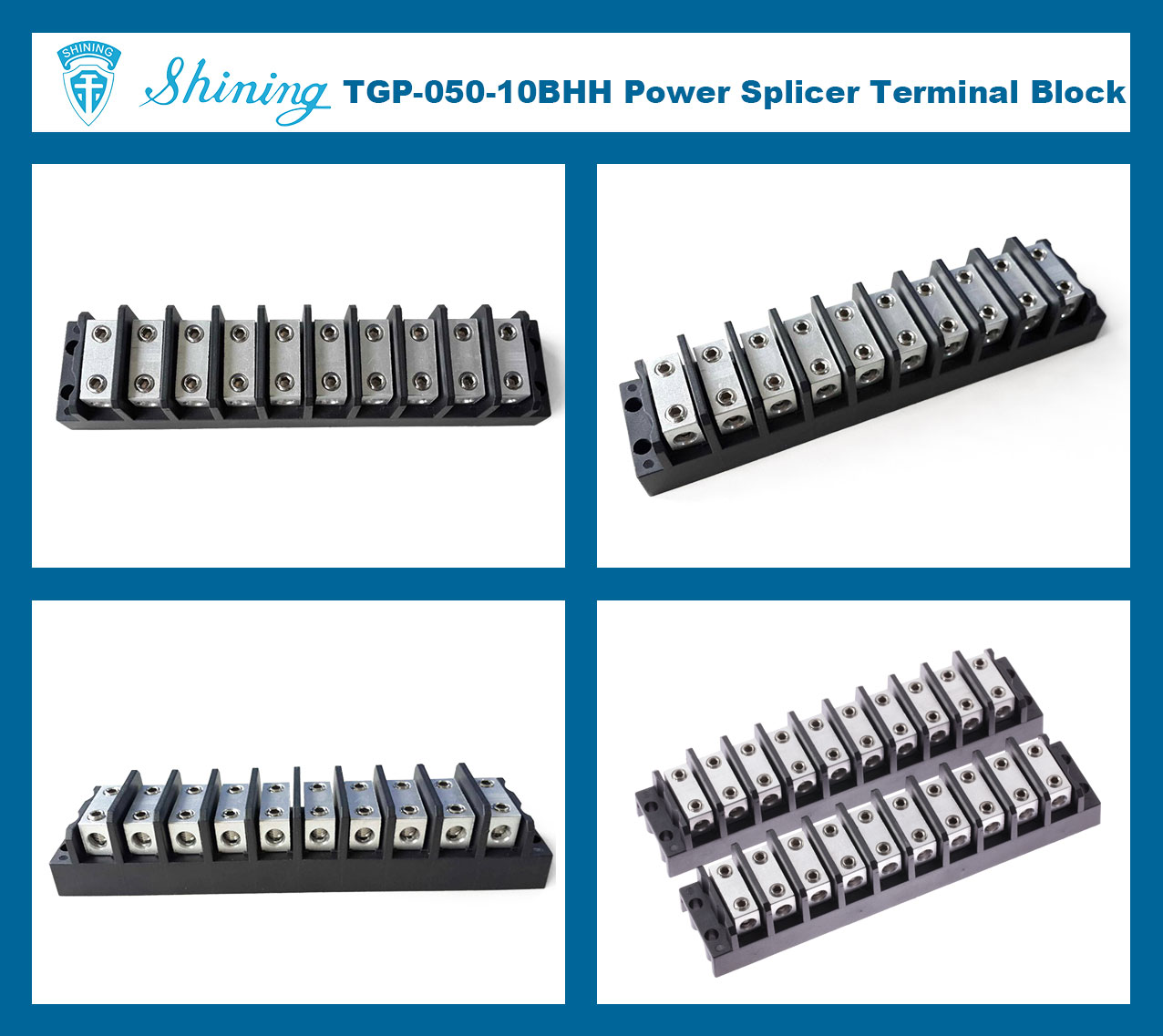

Product Photos

 TGP-050-10BHH 600V 50A 10 Pin Power Splicer Terminal Block



Item No. TGP-050-02BHH TGP-050-03BHH TGP-050-04BHH TGP-050-05BHH TGP-050-06BHH TGP-050-07BHH
Specifications
Total Length (L) [inch] 50.0mm (1.969") 65.0mm (2.559") 80.0mm (3.150") 95.0mm (3.740") 110.0mm (4.331") 125.0mm (4.921")
Ref. Length (L1) [inch] 42.0mm (1.654") 57.0mm (2.244") 72.0mm (2.835") 87.0mm (3.425") 102.0mm (4.106") 117.0mm (4.606")
Ref. Length (L2) [inch] 15.0mm (0.591")
Ref. Length (L3) [inch] 10.0mm (0.394")
Width (W) [inch] 37.0mm (1.457")

Ref. Width (W1) [inch]

16.0mm (0.630")
Height (H) [inch] 32.5mm (1.280")
Screw (Line) Hexagon Socket Set Screw, M6-1.0
Rated Torque [in-lb] 2.26 N-m (20 in-lb)
Quick Connect Size (Load) N / A
Pin (Pole) 2 3 4 5 6 7
Electrical Specifications
Rated Voltage [V] 600V
Rated Current [A] 50A
Wire Size [AWG] Input: #16-6 AWG / Output: #16-6 AWG
WIre Size [mm2] Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2
Materials
Insulator Materials PBT
Color Black
Flame Retarded Grade UL 94V-0
Temperature [℃] 120℃
Approval UL/cUL Approved.  File No. E257927



Item No. TGP-050-08BHH TGP-050-09BHH TGP-050-10BHH TGP-050-11BHH TGP-050-12BHH
Specifications
Total Length (L) [inch] 140.0mm (5.512") 155.0mm (6.102") 170.0mm (6.693") 185.0mm (7.283") 200.0mm (7.874")
Ref. Length (L1) [inch] 42.0mm (1.654") 57.0mm (2.244") 72.0mm (2.835") 87.0mm (3.425") 102.0mm (4.106")
Ref. Length (L2) [inch] 15.0mm (0.591")
Ref. Length (L3) [inch] 10.0mm (0.394")
Width (W) [inch] 37.0mm (1.457")

Ref. Width (W1) [inch]

16.0mm (0.630")
Height (H) [inch] 32.5mm (1.280")
Screw (Line) Hexagon Socket Set Screw, M6-1.0
Rated Torque [in-lb] 2.26 N-m (20 in-lb)
Quick Connect Size (Load) N / A
Pin (Pole) 8 9 10 11 12
Electrical Specifications
Rated Voltage [V] 600V
Rated Current [A] 50A
Wire Size [AWG] Input: #16-6 AWG / Output: #16-6 AWG
WIre Size [mm2] Input: 1.3-13.0mm2 / Output: 1.3-13.0mm2
Materials
Insulator Materials PBT
Color Black
Flame Retarded Grade UL 94V-0
Temperature [℃] 120℃
Approval UL/cUL Approved.  File No. E257927



Packaging
100pcs/N.W. :17.9kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.
