TGP-085-06BSS 6 Pin Power Splicer Terminal Block

  • Inquiry

  • Download

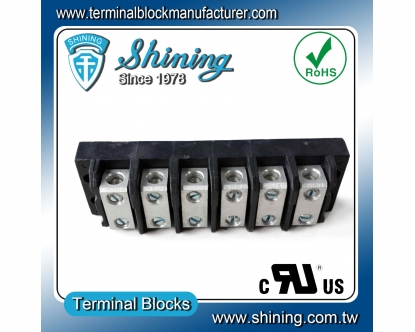

    • TGP-085-06BSS 600V 85A 6 Pin Power Splicer Terminal Block

    Rated Voltage: 600V

    Rated Current: 85A

    Pin (Pole): 6 Pin (Pole)

    Screw: Steel. Slotted Set Screw (5/16-24). Stainless Steel is Optional Parts

    Input: 1 Way ; Output: 1 Way

    Certificate: RoHS. UL / cUL Approval

    Please see the Specification Table below:



Description

TGP-085-06BSS 600V 85A 6 Pin Power Solicer Terminal Block



Gerneral Product Information
Item number: TGP-085-06BSS
Rating: 600V, 85A, 6 Pin
Size: 136.2*41.0*33.2mm (L*W*H)
Wire Size:

Input: #14-2 AWG / Output: #14-2 AWG

Input: 2.0-33.0 mm2 / Output: 2.0-33.0 mm2
Screw Size: Slotted Set Screw, 5/16-24



Dimensions [mm]
Item No. Pin (Pole) Length (L) Width (W) Height (H)
TGP-085-02BSS 2 2.354" (59.8mm) 1.614"
(41.0mm)

1.307"

(33.2mm)
TGP-085-03BSS 3 3.110" (79.0mm)
TGP-085-04BSS 4 3.835" (97.4mm)
TGP-085-05BSS 5 4.598" (116.8mm)
TGP-085-06BSS 6 5.362" (136.2mm)
TGP-085-07BSS 7 6.094" (154.8mm)
TGP-085-08BSS 8 6.850" (174.0mm)

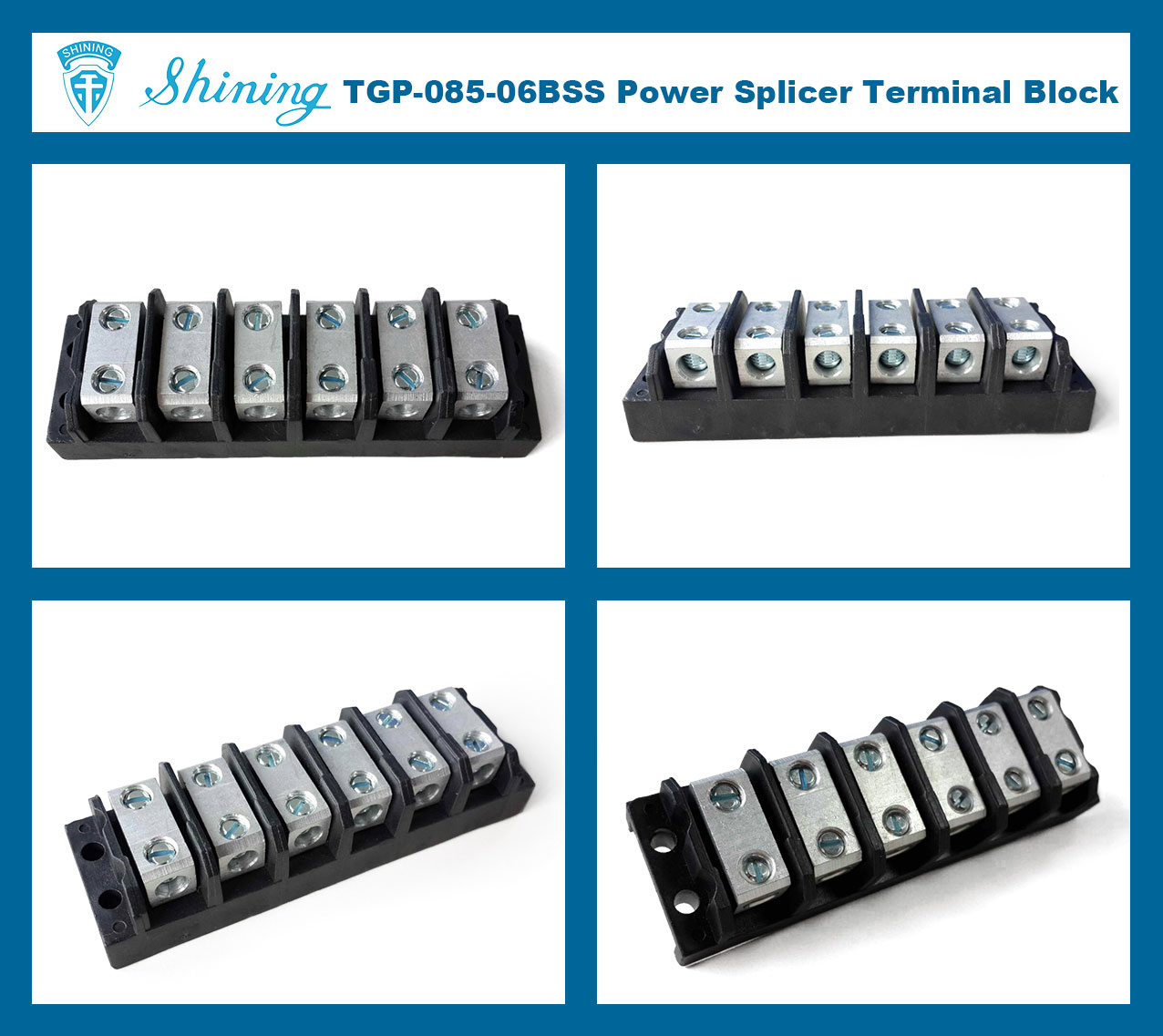

Product Photos

 TGP-085-06BSS 600V 85A 6 Pin Power Splicer Terminal Block



Item No. TGP-085-02BSS TGP-085-03BSS TGP-085-04BSS TGP-085-05BSS TGP-085-06BSS TGP-085-07BSS TGP-085-08BSS
Specifications
Total Length (L) [inch] 2.354"  (59.8mm) 3.110"  (79.0mm) 3.835"  (97.41mm) 4.598"  (116.8mm) 5.362"  (136.2mm) 6.094"  (154.8mm) 6.850"  (174.0mm)
Ref. Length (L1) [inch] 1.890"(48.0mm) 2.638"(67.0mm) 3.386"(86.0mm) 4.134"(105.0mm) 4.882"(124.0mm) 5.630"(143.0mm) 6.378"(162.0mm)
Ref. Length (L2) [inch] 0.748" (19.0mm)
Ref. Length (L3) [inch] 0.630" (16.0mm)
Width (W) [inch] 1.614" (41.0mm)

Ref. Width (W1) [inch]

 0.630" (16.0mm)
Height (H) [inch] 1.307" (33.2mm)
Screw (Line) Slotted Set Screw, 5/16-24
Rated Torque [in-lb] 60 in-lb or 2.26 N-m
Quick Connect Size (Load) N /A
Pin (Pole) 2 3 4 5 6 7 8
Electrical Specifications
Rated Voltage [V] 600V
Rated Current [A] 85A
Wire Size [AWG] Input: #14-2 AWG / Output: #14-2 AWG
WIre Size [mm2] Input: 2.0-33.0 mm2 / Output: 2.0-33.0 mm2
Materials
Insulator Materials PBT
Color Black
Flame Retarded Grade UL 94V-0
Temperature [℃] 120℃
Approval UL/cUL Approved.  File No. E257927



Packaging
100pcs/N.W. :17.3kgs /carton
