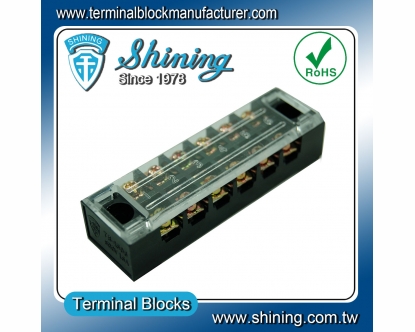

TB-1506 Fixed Barrier 15A 6 Pole Terminal Block

  • Inquiry

  • Download

    • TB-1506 Fixed Barrier 15A 6 Pole Terminal Block



    Rated Voltage: 600V

    Rated Current: 15A

    Dimension: 73.5 x 22.0 x 17.5 mm (L x W x H)

    Screw: M3

    Mounted Hole: M5

    Install Type: Panel Mounted. Din Ral is not required.

    Certificate: RoHS Approval

    Pole: 6 Poles. Please see the Specification Table below:



Description

TB-1506 Fixed Barrier 15A 6 Pole Terminal Block



Gerneral Product Information
Item number: TB-1506
Rating: 600V, 15A, 3 Poles
Size: 73.5*22.0*17.5mm (L*W*H)
Wire Size: 2.0 mm2 / AWG 14
Screw Size: M3



Dimensions [mm]
Item No. Poles (P) Length (L) Width (W) Height (H)
TB-1503 3 46.5 mm 22.0 mm 17.5 mm
TB-1504 4 55.5 mm
TB-1506 6 73.5 mm
TB-1512 12 128.5 mm

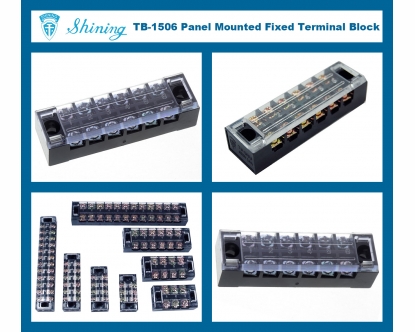

Product Photos

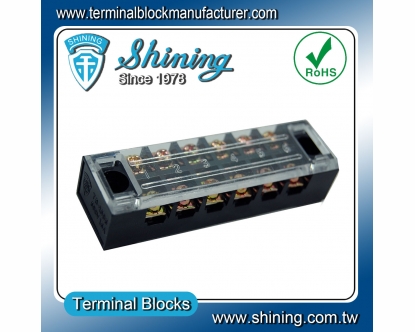

TB-1506 Fixed Type 15A 6 Pole Terminal Block



Specification Sheet
TB Series Product Picture TB Series 1TBF-DR
Item No.
 TB-1503 TB-1504 TB-1506 TB-1512 TB-2503 TB-2504 TB-2506 TB-2512
Electrical Specifications
Rated Volt [V] 600V
Rated Current [A] 15A 25A
Wire Size [mm2] 2.0 mm2 6.0 mm2
Wire Size [AWG] AWG 14 AWG 10
Materials
Insulator Materials PC
Color Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2 (UL94V-0)
Operating Temperature [℃] -40℃+110℃ (Max: +220℃)
Conductor Brass, Nickel Plated (Copper, Tin Plated)
Dimensions Protective Cover come with terminal blocks for free.  No Marker Strip needed. (Molded Printed.)
Total Length L [mm] 46.5 55.5 73.5 128.5 50.5 61.5 82.5 147.5
Ref. Length L1 [mm] 36.5 45.5 63.5 118.0 40.0 51.0 72.0 136.0
Gap A [mm] 7.0 8.0
Pitch B [mm] 9.0 10.5
Width W [mm] 22.0 28.0

Height H [mm]

 17.5 19.0
Screw (C) (Steel, Zinc Plated) M3 M4
Rated Torque [N-m] 0.5 1.2
Rated Torque [in-lb] 4.4 10.6
Poles 3 4 6 12 3 4 6 12



Specification Sheet
TB Series Product Pictures TB Series 1TBF-DR
Item No.
 TB-2503L TB-2504L TB-2506L TB-2512L TB-3503 TB-3504 TB-3506 TB-3512
Electrical Specifications
Rated Volt [V] 600V
Rated Current [A] 25A 35A
Wire Size [mm2] 6.0 mm2 10.0 mm2
Wire Size [AWG] AWG 10 AWG 8
Materials
Insulator Materials PC
Color Black (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2 (UL94V-0)
Operating Temperature [℃] -40℃~+110℃ (Max: +220℃)
Conductor Brass, Nickel Plated (Copper, Tin Plated)
Dimensions Protective Cover come with terminal blocks for free.  No Marker Strip needed. (Molded Printed.)
Total Length L [mm] 56.0 68.0 92.0 164.0 56.0 68.0 92.0 164.0
Ref. Length L1 [mm] 45.0 57.0 81.0 153.0 45.0 57.0 81.0 153.0
Gap A [mm] 10.0
Pitch B [mm] 12.0
Width W [mm] 30.0
Height H [mm] 19.5
Screw (C) (Steel, Zinc Plated) M4
Rated Torque [N-m] 1.2
Rated Torque [in-lb] 10.6
Poles 3 4 6 12 3 4 6 12



Packaging
50pcs/box, 600pcs/12boxes/N.W. :18.2kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.

Express Bar
23

Company



 FAQ

Q: Which type of Terminal Block should I choose?
A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected.  In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)?  Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)?

Q: How long does the delivery time take?
A: We send our goods from Taiwan, and the delivery time depends on the location of delivery address, and the shipping way will be Express Service, Sea Shipping, or Air Shipping for your reference. Exxpress Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on thr Logistuc Schedule after remitting the Payment.

Q: How long is the Lead Time after placing an order?
A: The Lead Time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.

Q: How do i get your Quotation?

A: Please provide us some information as below:

1. Item Number.

2. Quantity.

3. Company Profile (Name, Tel, Fax, Address, and Webpage)

4. Any Other Relevant Details

5. For more details, please visit: www.shining.com.tw

Webpage: Fixed Terminal Block (TB-Series)
