TA-400 Din Rail Mounted 600V 400A Terminal Block

  • Inquiry

  • Download

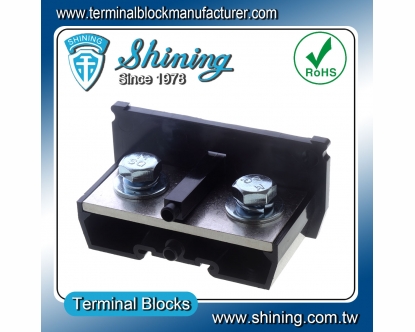

  • TA-400 Din Rail Mounted 600V 400A Terminal Block

    Rated Voltage: 600V

    Rated Current: 400A

    Dimension: 85.0 x 106.0 x 50.0 mm (L x W x H)

    Install Type: 35mm Din Rail Mounted (TA-001A / TA-001S) / Panel Mounted

    Certificate: RoHS Approval

    Pole: Any Poles is available. Please see the Specification Table below:



Description

TA-400 Din Rail Mounted 600V 400A Terminal Block



Gerneral Product Information
Item number: TA-400
Rating: 600V, 400A
Size: 85.0*106.0*50.0mm (L*W*H)
Wire Size: 280.0 mm2 / 550
Screw Size: M10



Dimensions [mm]
Item No. Poles (P) Length (L) Width (W) Height (H)
TA-400-01P 1 50.0*1+35.0=85.0 106.0 mm 50.0 mm
TA-400-02P 2 50.0*2+35.0=135.0
TA-400-03P 3 50.0*3+35.0=185.0
TA-400-04P 4 50.0*4+35.0=235.0
TA-400-05P 5 50.0*5+35.0=285.0
TA-400-nP n 50.0*n+35.0
35.0 mm = Length of End Plate



Product Photo

TA-400 Din Rail Mounted 600V 400A Terminal Block



TA Series Product Picture TA Series
Item No. TA-010 TA-020 TA-030 TA-040
Specifications
Total Length (L) [mm] 8.8*n+17.0 10.7*n+16.5 13.0*n+17.0 15.0*n+17.0
Ref. Length (L1) [mm] 8.8*n+12.0 10.7*n+11.0 13.0*n+11.0 15.0*n+11.0
Gap (A) [mm] 7.0 8.0 10.0 12.0
Pitch (B) [mm] 8.8 10.7 13.0 15.0
Width (W) [mm] 38.0 38.0 38.0 38.0
Ref. Width (W1) [mm] 20.5 20.5 20.5 20.5
Height (H) [mm] 28.0 28.0 28.0 28.0
Screw (C)  (Steel, Zinc Plated) M3 M4 M4 M5
Rated Torque [N-m] 0.5 1.2 1.2 2.0
Rated Torque [in-lb] 4.4 10.6 10.6 17.7
Poles/Positions (P) Any  (n: the Number of Poles)
Electrical Specification
Rated Voltage  [V] 600V
Rated Current [A] 10A 20A 30A 40A
Wire Size  [mm2] 1.6 mm2 4.0 mm2 6.0 mm2 10.0 mm2
Wire Size  (AWG) AWG 16 AWG 12 AWG 10 AWG 8
Materials
Insulator Materials PC
Color Black  (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2  (UL94V-0)
Operating Temperature  [oC] -40℃~+110℃  (Max: +220℃)
Conductor Brass, Nickel Plated
(Copper, Tin Plated)
Accessories & Parts Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
Protective Cover is optional for the alternative of Transparent Cover.
End Plate TA-010EP
End Clamp TE-002TE-002HTA-002TA-002HTF-ECLTF-ECH
DIN Mount Rail TA-001A, TA-001S (35mm DIN Rail)
Protective Cover M-PCV-A010  (=TA-003)
Transparent Cover M-CV-010
Paper Marker Strip (Free) M-MKS-010 (-XXX: Length)
Mounting Rod [mm] (Steel) M-MRD-010S (-XXX: Length)
Remarks Ex: TA-010-07P (7 poles assembly of TA-010)



TA Series Product Drawing TA-DR
Item No. TA-060 TA-100 TA-150 TA-200 TA-300 TA-400
Specifications
Total Length (L) [mm] 20.5*n+34.0 26.5*n+35.5 30.0*n+34.0 35.0*n+35.0 42.0*n+34.0 50.0*n+35.0
Ref. Length (L1) [mm] 20.5*n+17.0 26.5*n+18.5 30.0*n+16.0 35.0*n+18.0 42.0*n+17.0 50.0*n+17.0
Gap (A) [mm] 16.5 22.5 26.0 31.0 37.0 45.0
Pitch (B) [mm] 20.5 26.5 30.0 35.0 42.0 50.0
Width (W) [mm] 50.0 64.0 70.0 80.0 106.0 106.0
Ref. Width (W1) [mm] 24.0 24.0 24.0 24.0 24.0 24.0
Height (H) [mm] 38.0 41.0 42.0 47.0 50.0 50.0
Screw (C)  (Steel, Zinc Plated) M6 M8 M8 M10 M10 M10
Rated Torque [N-m] 2.5 6.0 6.0 10.0 10.0 10.0
Rated Torque [in-lb] 22.1 53.1 53.1 88.5 88.5 88.5
Poles/Positions (P) Any  (n: the Number of Poles)
Electrical Specification
Rated Voltage  [V] 600V
Rated Current [A] 60A 100A 150A 200A 300A 400A
Wire Size  [mm2] 16.0 mm2 35.0 mm2 60.0 mm2 100.0 mm2 175.0 mm2 280.0 mm2
Wire Size  (AWG) AWG 6 AWG 2 1/0 3/0 350 550
Materials
Insulator Materials PC  (PA66)
Color Black  (White, Blue, Red, Brown, ...)
Flame Retarded Grade UL94V-2  (UL94V-0)
Operating Temperature  [oC] -40℃~+110℃  (Max: +220℃)
Conductor Brass, Nickel Plated
(Copper, Tin Plated)
Accessories & Parts Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
Protective Cover is optional for the alternative of Transparent Cover.
End Plate TA-060EP TA-100EP TA-150EP TA-200EP TA-300EP TA-400EP
End Clamp TE-002HTA-002HTF-ECH
DIN Mount Rail TA-001A, TA-001S (35mm DIN Rail)
Protective Cover N/A
Transparent Cover M-CV-060 M-CV-100 M-CV-150 M-CV-200 M-CV-300 M-CV-300
Paper Marker Strip (Free) M-MKS-060 (-XXX: Length)
Mounting Rod [mm] (Steel) M-MRD-060S (-XXX: Length)
Remarks EX: TA-400-04P (4 poles assembly of TA-400)



Packaging
30pcs/box, 60pcs/2boxes, N.W. :17.8kgs /carton
