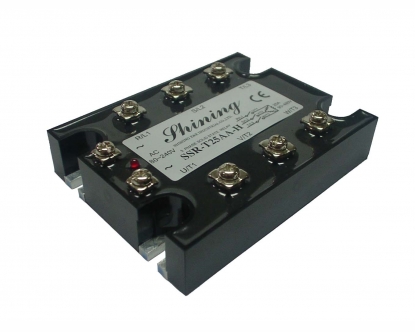

SSR-T25AA-H 25A Three Phase Solid State Relay

  • Inquiry

    • Shining SSR-TXXAA-(H) Series Three Phase Solid State Relays.

    AC to AC

    Maximum Load Current: 25A/ 40A

    Control method: Zero Cross

    Optional Accessories and Parts: Protective Cover, Heat Sinks, and Fans

    Item No. SSR-T25AA/ SSR-T40AA/ SSR-T25AA-H/ SSR-T40AA-H



Description

SSR-T25AA-H 25A Three Phase Solid State Relay

Gerneral Product Information
Item number: SSR-T25AA-H
Output Load Current: 25A
Output Load Voltage Range: 24~280VAC
Operate InputCurrent: 80~240VAC
Specification: 103 x 79 x 27 mm



Product Features

• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-T-CV
• Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• CE Compliant.



    SSR-TDA-DR  SSR-T25AA  SSR-T40AA  SSR-T25AA-H  SSR-T40AA
Product Item No. SSR-T25AA SSR-T40AA SSR-T25AA-H SSR-T40AA-H
Specifications/Dimensions

L x W x H
103 x 79 x 27 mm
103 x 79 x 27 mm
103 x 79 x 27 mm
103 x 79 x 27 mm
Ref.   L1 x W1
24.1 x 27.6 mm
24.1 x 27.6 mm
24.1 x 27.6 mm
24.1 x 27.6 mm
Ref.   L2 x W2
88.9 x 47.5 mm
88.9 x 47.5 mm
88.9 x 47.5 mm
88.9 x 47.5 mm
Ref.   Diameter (Ø)

5.2 mm

5.2 mm

5.2 mm

5.2 mm
Electrical Specifications

Max. Load Current
25 A
40 A
25 A
40 A
Control Method
Zero Cross
Zero Cross
Zero Cross
Zero Cross
Input Operating Voltage
80~240 VAC
80~240 VAC
80~240 VAC
80~240 VAC
Input Current
60mA@ 32 VDC
60mA@ 32 VDC
60mA@ 220 VAC
60mA@ 220 VAC
Must Turn Off Voltage
0~70 VAC
0~70 VAC
0~70 VAC
0~70 VAC
Output Load Voltage Range
24~280 VAC
24~280 VAC
90~480 VAC
90~480 VAC
Max. One Circle  Peak Surge
250 A
400 A
250 A
400 A
Min. Blocking Voltage
600 V
600 V
600 V
600 V
Turn On & Turn Off Time
< 1/2 AC circle
< 1/2 AC circle
< 1/2 AC circle
< 1/2 AC circle
Isolate Impedance
50 MΩ / 500 VDC
50 MΩ / 500 VDC
50 MΩ / 500 VDC
50 MΩ / 500 VDC
Max. On-State Voltage Drop
1.6 V / 25°C
1.6 V / 25°C
1.6 V / 25°C
1.6 V / 25°C
Materials

Body Materials
PC
Color
White
Accessories & Parts

Protective Cover
SSR-T-CV (Optional)
Heat Sink
HS-80XXX series (HS-80050, HS-80100, HS-80150, HS-80200)
Fan
FAC-80, FDC-80, FDC-50 fans
Approval & Certificate
CE
CE
CE
CE



Packaging
30pcs/ctn, N.W. :13.3kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.

Express Bar
23

Company

1.Material and color can be customized.
2.For modification, there will be surcharge.
3.Drawings on the websites are for reference only.
5.Our SSR-TxxAA Series have gotten CE approval.
