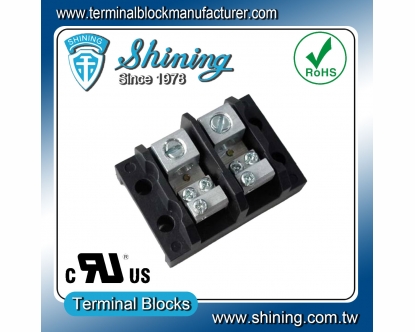

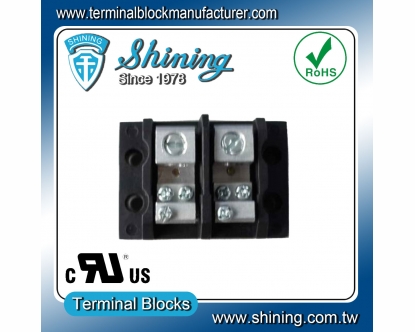

TGP-050-02JSC 50Amp 2Way Power Distribution Block

  • Inquiry

  • Download

  • TGP-050-02JSC 600V 50 Amp 2 Way Power Distribution Block

    Rated Voltage: 600V

    Rated Current: 50A

    Way (Pole): 2 Way (Pole)

    Screw: Steel. Slotted Set Screw (M6-1.0). Stainless Steel is Optional Parts

    Input: 1 Way ; Output: 3 Way

    Certificate: RoHS. UL / cUL Approval

    Please see the Specification Table below:



Description

TGP-050-02JSC 600V 50 Amp 2 Way Power Distribution Block



Gerneral Product Information
Item number: TGP-050-02JSC
Rating: 600V, 50A, 2 Way
Size: 50.0*37.0*32.5mm (L*W*H)
Wire Size:

Input: #16-6 AWG / Output: #20-12 AWG

Input: 1.3-13.0mm2 / Output: 0.5-3.3mm2

Screw Size: Slotted Set Screw, M6-1.0



Dimensions [mm]
Item No. Way (Pole) Length (L) Width (W) Height (H)
TGP-050-02JSC 2 50.0mm (1.969") 37.0mm (1.457") 32.5mm (1.280")
TGP-050-03JSC 3 65.0mm (2.559")
TGP-050-04JSC 4 80.0mm (3.150")
TGP-050-05JSC 5 95.0mm (3.740")
TGP-050-06JSC 6 110.0mm (4.331")
TGP-050-07JSC 7 125.0mm (4.921")
TGP-050-08JSC 8 140.0mm ( 5.512")
TGP-050-09JSC 9 155.0mm ( 6.102")
TGP-050-10JSC 10 170.0mm ( 6.693")
TGP-050-11JSC 11 185.0mm ( 7.283")
TGP-050-12JSC 12 200.0mm ( 7.874")

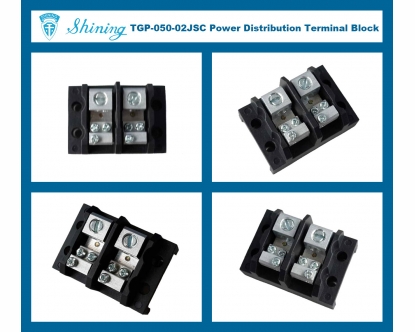

Product Photos

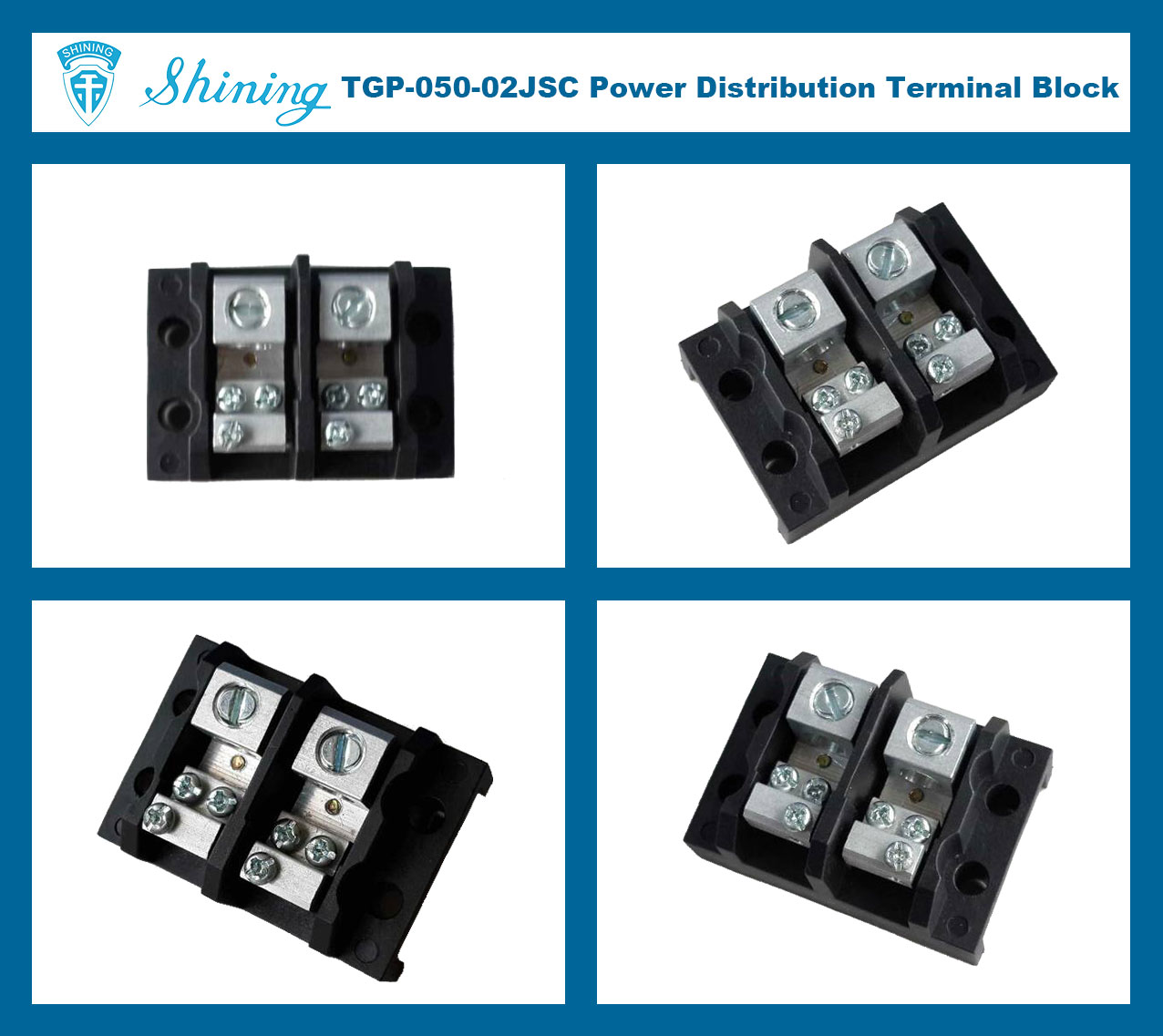

 TGP-050-02JSC 600V 50 Amp 2 Way Power Distribution Block



Item No. TGP-050-02JSC TGP-050-03JSC TGP-050-04JSC TGP-050-05JSC TGP-050-06JSC TGP-050-07JSC
Specifications
Total Length (L) [inch] 50.0mm (1.969") 65.0mm (2.559") 80.0mm (3.150") 95.0mm (3.740") 110.0mm (4.331") 125.0mm (4.921")
Ref. Length (L1) [inch] 42.0mm (1.654") 57.0mm (2.244") 72.0mm (2.835") 87.0mm (3.425") 102.0mm (4.106") 117.0mm (4.606")
Ref. Length (L2) [inch] 15.0mm (0.591")
Ref. Length (L3) [inch] 10.0mm (0.394")
Width (W) [inch] 37.0mm (1.457")

Ref. Width (W1) [inch]

16.0mm (0.630")
Height (H) [inch] 32.5mm (1.280")
Screw (Line) Slotted Set Screw, M6-1.0
Rated Torque [in-lb] 2.26 N-m (20 in-lb)
Quick Connect Size (Load) N / A
Way (Pole) 2 3 4 5 6 7
Electrical Specifications
Rated Voltage [V] 600V
Rated Current [A] 50A
Wire Size [AWG] Input: #16-6 AWG / Output: #20-12 AWG
WIre Size [mm2] Input: 1.3-13.0mm2 / Output: 0.5-3.3mm2
Materials
Insulator Materials PBT
Color Black
Flame Retarded Grade UL 94V-0
Temperature [℃] 120℃
Approval UL/cUL Approved.  File No. E257927



Item No. TGP-050-08JSC TGP-050-09JSC TGP-050-10JSC TGP-050-11JSC TGP-050-12JSC
Specifications
Total Length (L) [inch] 140.0mm (5.512") 155.0mm (6.102") 170.0mm (6.693") 185.0mm (7.283") 200.0mm (7.874")
Ref. Length (L1) [inch] 42.0mm (1.654") 57.0mm (2.244") 72.0mm (2.835") 87.0mm (3.425") 102.0mm (4.106")
Ref. Length (L2) [inch] 15.0mm (0.591")
Ref. Length (L3) [inch] 10.0mm (0.394")
Width (W) [inch] 37.0mm (1.457")

Ref. Width (W1) [inch]

16.0mm (0.630")
Height (H) [inch] 32.5mm (1.280")
Screw (Line) Slotted Set Screw, M6-1.0
Rated Torque [in-lb] 2.26 N-m (20 in-lb)
Quick Connect Size (Load) N / A
Way (Pole) 8 9 10 11 12
Electrical Specifications
Rated Voltage [V] 600V
Rated Current [A] 50A
Wire Size [AWG] Input: #16-6 AWG / Output: #20-12 AWG
WIre Size [mm2] Input: 1.3-13.0mm2 / Output: 0.5-3.3mm2
Materials
Insulator Materials PBT
Color Black
Flame Retarded Grade UL 94V-0
Temperature [℃] 120℃
Approval UL/cUL Approved.  File No. E257927



Packaging
500pcs/N.W. :21.5kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.

Express Bar

23

Company



 FAQ

Q: Which type of Terminal Block should I choose?
A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected.  In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)?  Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)?

Q: How long does the delivery time take?
A: We send our goods from Taiwan, and the delivery time depends on the location of delivery address, and the shipping way will be Express Service, Sea Shipping, or Air Shipping for your reference. Exxpress Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on thr Logistuc Schedule after remitting the Payment.

Q: How long is the Lead Time after placing an order?
A: The Lead Time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.
