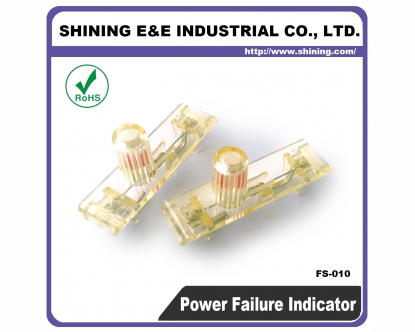

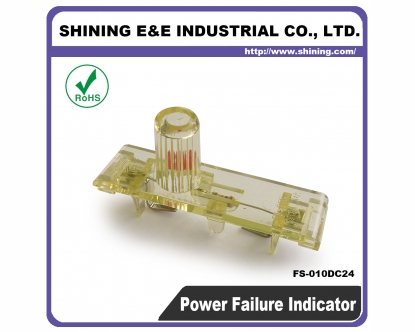

FS-010DC24 Power Failure Off Fuse Indicator



Description

FS-010DC24 Power Failure Off Fuse Indicator



Gerneral Product Information
Item number: FS-010DC24
Rating: 6V~24V (AC / DC are available)
Size: 54.0*15.0*30.0mm (L*W*H)

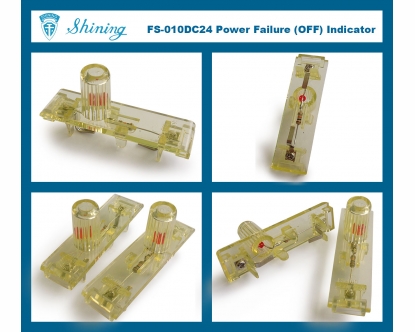

Product Photos

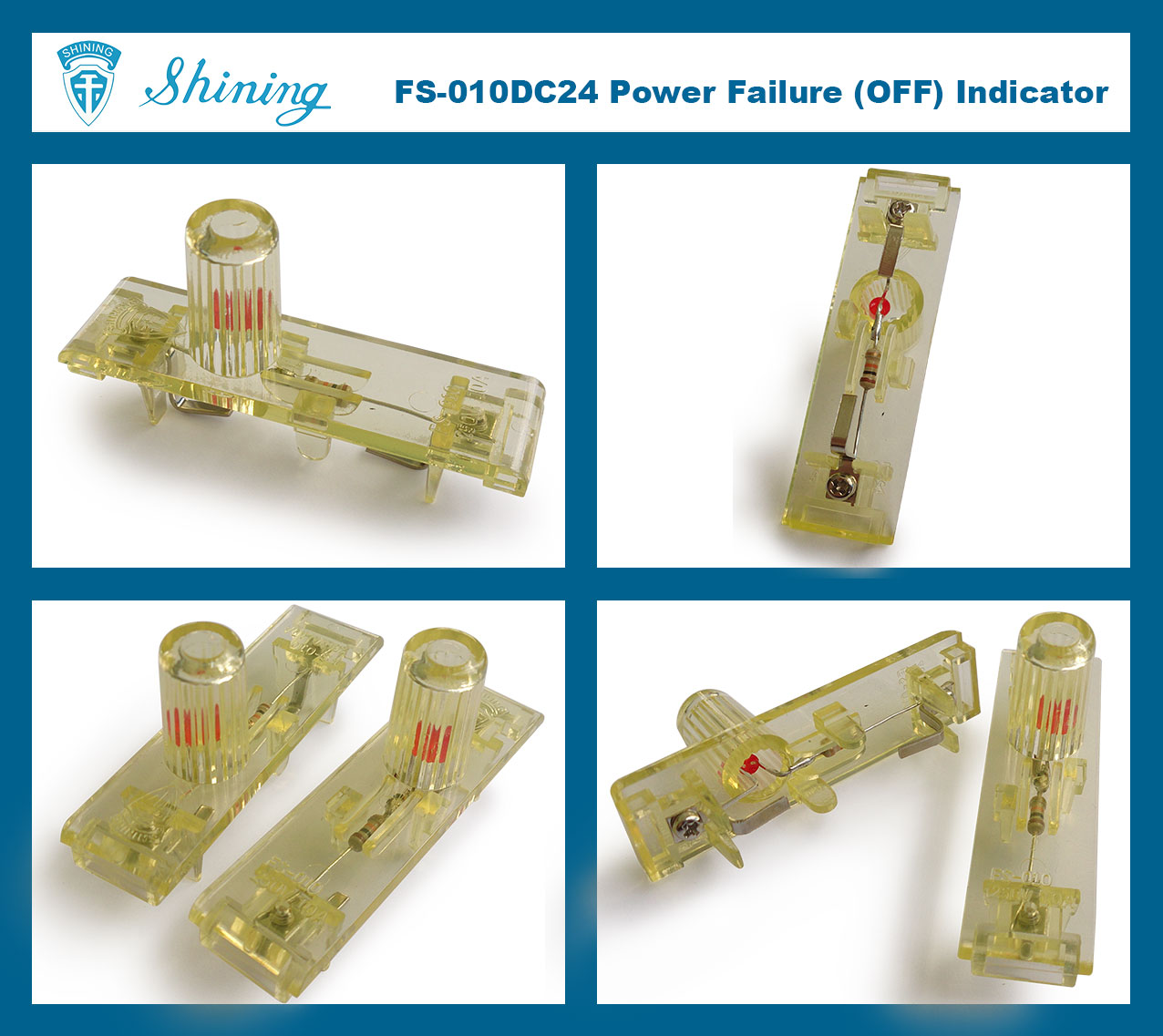

FS-010DC24 Power Off Failure Fuse Indicator



Product Pictures
Item No. FS-010DC24 FS-010DC48 FS-010DC125 FS-010AC
Specifications/Dimensions DC Indicator DC Indicator DC Indicator AC Indicator
Length (L) [mm] 54.0 mm 54.0 mm 54.0 mm 54.0 mm
Width (W) [mm] 15.0 mm 15.0 mm 15.0 mm 15.0 mm
Height (H) [mm] 30.0 mm 30.0 mm 30.0 mm 30.0 mm
Electrical Specifications
Rated Voltage 6V~24V (AC / DC) DC 24V~48V DC 48V~125V AC 110V~380V
Materials
Base Materials PC PC PC PC
Color Clear Natural Clean Natural Clean Natural Clean Natural
Flame Retarded Grade UL 94V-2 UL 94V-2 UL 94V-2 UL 94V-2
Temperature [℃] 110 ℃ 110 ℃ 110 ℃ 110 ℃

Applications

for Fuse Holders Fuse Blocks

FS-011B

FS-012B

FS-013B

FS-014B

FS-015B

FS-016B

FS-017B

FS-018B

FS-011B

FS-012B

FS-013B

FS-014B

FS-015B

FS-016B

FS-017B

FS-018B

FS-011B

FS-012B

FS-013B

FS-014B

FS-015B

FS-016B

FS-017B

FS-018B

FS-011B

FS-012B

FS-013B

FS-014B

FS-015B

FS-016B

FS-017B

FS-018B



 Product Pictures
Item No. FB-030-1 FB-030-2 FB-030-3
Specifications/Dimensions DC Indicator AC Indicator AC Indicator
Length (L) [mm] 76.0 mm (3.000") 76.0 mm (3.000") 76.0 mm (3.000")
Width (W) [mm] 19.0 mm (0.748") 19.0 mm (0.748") 19.0 mm (0.748")
Height (H) [mm] 33.5 mm (1.319") 33.5 mm (1.319") 33.5 mm (1.319")
Electrical Specifications
Rated Voltage DC 12V~120V
AC 110V~380V AC 110V~600V
Materials
Base Materials PC PC PC
Color Clear Natural Clean Natural Clean Natural
Flame Retarded Grade UL 94V-2 UL 94V-2 UL 94V-2
Temperature [℃] 110 ℃ 110 ℃ 110 ℃

Applications

for Fuse Holders Fuse Blocks

FB-M031PQ

FB-M032PQ

FB-M033PQ

FB-M031SQ

FB-M032SQ

FB-M033SQ

FB-M031PQ

FB-M032PQ

FB-M033PQ

FB-M031SQ

FB-M032SQ

FB-M033SQ

FB-M031PQ

FB-M032PQ

FB-M033PQ

FB-M031SQ

FB-M032SQ

FB-M033SQ



 Product Pictures
Item No. FB-6010 FB-6010A FB-6010B
Specifications/Dimensions AC/DC Indicator AC Indicator AC/DC Indicator
Length (L) [mm] 55.0 mm 55.0 mm 55.0 mm
Width (W) [mm] 13.0 mm 13.0 mm 13.0 mm
Height (H) [mm] 30.0 mm 30.0 mm 30.0 mm
Electrical Specifications
Rated Voltage 110V~600V (AC / DC) AC 110V~380V 12V~120V (AC / DC)
Materials
Base Materials PC PC PC
Color Clear Natural Clean Natural Clean Natural
Flame Retarded Grade UL 94V-2 UL 94V-2 UL 94V-2
Temperature [℃] 110 ℃ 110 ℃ 110 ℃

Applications

for Fuse Holders Fuse Blocks

FB-6011

FB-6012

FB-6011

FB-6012

FB-6011

FB-6012



Packaging
100pcs/box, 1,200pcs/12boxes/N.W. :7.7kgs /carton



Shipping information
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.

2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.
